HVA800 Series with High-Voltage Interlock Connector

Name: HVA800 Series with High-Voltage Interlock Connector
Brand: Cables and New Energy Products

Model:

1 / 9

HVA800 Series with High-Voltage Interlock Connector 1

1

HVA800 Series with High-Voltage Interlock Connector 2

2

HVA800 Series with High-Voltage Interlock Connector 3

3

HVA800 Series with High-Voltage Interlock Connector 4

4

HVA800 Series with High-Voltage Interlock Connector 5

5

HVA800 Series with High-Voltage Interlock Connector 6

6

HVA800 Series with High-Voltage Interlock Connector 7

7

HVA800 Series with High-Voltage Interlock Connector 8

8

HVA800 Series with High-Voltage Interlock Connector 9

9

Description

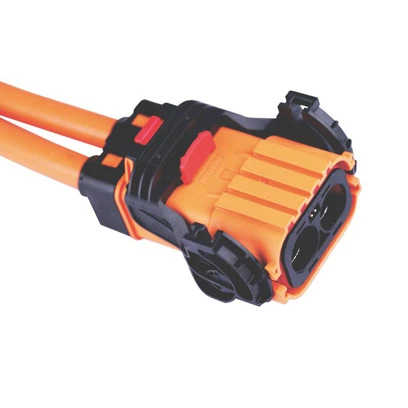

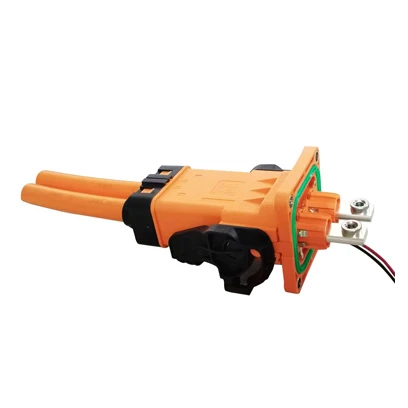

This product is a plastic-shell connector with features such as small size, light weight, easy installation, and high reliability. It offers two plug options: 180° cable outlet and 90° cable outlet. The HVA800 series is mainly used in electric vehicle power batteries, PDU, electronic control, and other equipment.

Features

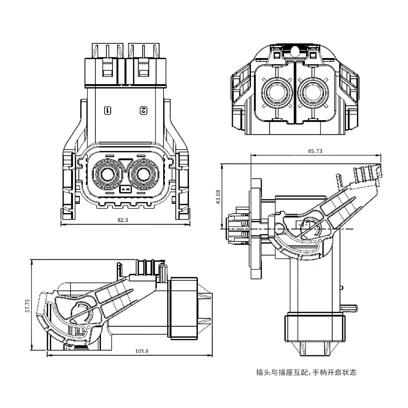

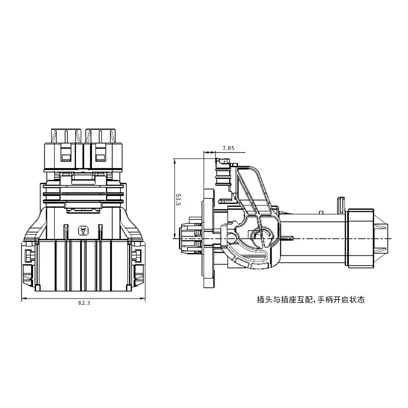

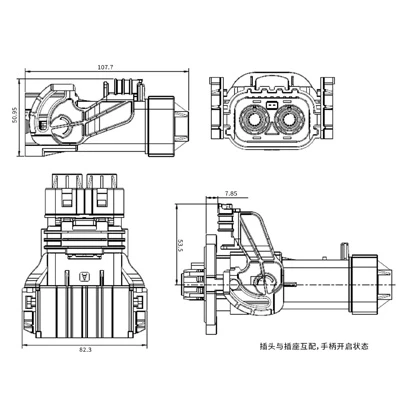

This product is a plastic-shell connector featuring small size, light weight, easy installation, and high reliability, with two plug options: 180° and 90° outlet. The HVA800 series is mainly used for electric vehicle power batteries, PDU, electronic control and other equipment.

Specifications

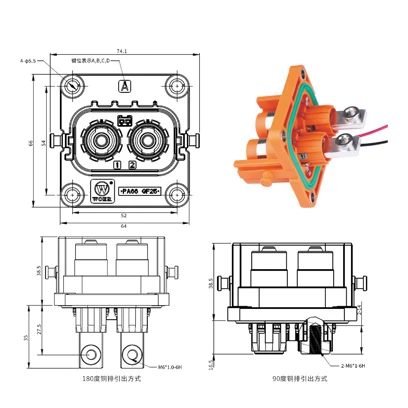

1HVA80002*HH / Socket, keyed, with HV interlock plug / M6

2HVA80002*HY / Socket, keyed, with HV interlock plug / M6

3HVA80062*HC50 / Straight plug, keyed, with HV interlock plug / 50mm² shielded cable

4HVA80082*HC25 / Angled plug, keyed, with HV interlock plug / 25mm² shielded cable

5HVA80082*HC35 / Angled plug, keyed, with HV interlock plug / 35mm² shielded cable

6HVA80082*HC50 / Angled plug, keyed, with HV interlock plug / 50mm² shielded cable

6262-straight plug; 82-angled plug

No.Order Model / Product Description / Compatible Cable Specification

Product seriesHVA800

AKey position (Key): A,B,C,D

HRear cable outlet: H - 180° outlet, Y - 90° outlet

C50Wiring specification: 25mm², 35mm², 50mm²

0202-socket
