HV600 series high-voltage interlock connector - WoEr+ Technology

Specifications

00-Flange-mounted receptacle (with pins) 6-Straight plug (with sockets)

1HV60002*HC10 / Receptacle / for 10mm² unshielded cable / with HV interlock / 10mm² unshielded cable

2Number of cores: 2-two cores

3HV60002*HC16 / Receptacle / for 16mm² unshielded cable / with HV interlock / 16mm² unshielded cable

4HV60002*NC16 / Receptacle / for 16mm² unshielded cable / without HV interlock / 16mm² unshielded cable

5HV60002*HC25 / Receptacle / for 25mm² unshielded cable / with HV interlock / 25mm² unshielded cable

6HV60002*NC25 / Receptacle / for 25mm² unshielded cable / without HV interlock / 25mm² unshielded cable

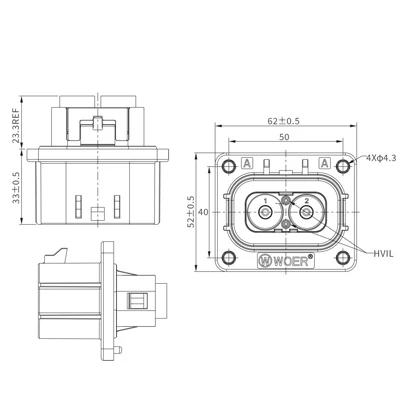

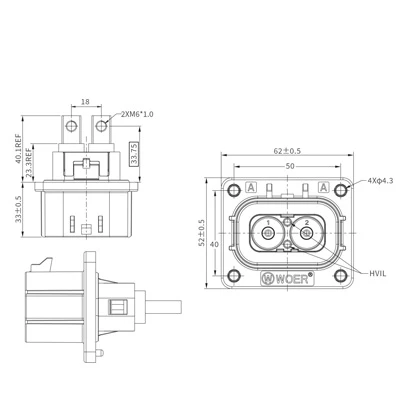

7HV60002*HH / Receptacle / for copper busbar / with HV interlock / copper busbar

8HV60002*NH / Receptacle / for copper busbar / without HV interlock / copper busbar

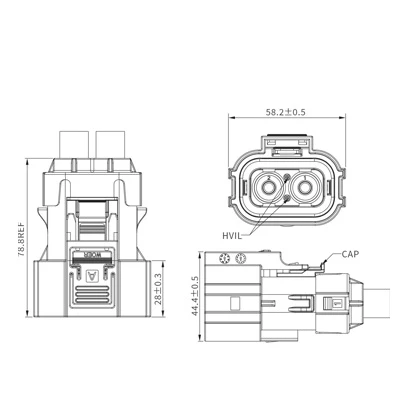

9HV60062*HC10 / Plug / for 10mm² shielded cable / with HV interlock / 10mm² shielded cable

10HV60062*NC10 / Plug / for 10mm² shielded cable / without HV interlock / 10mm² shielded cable

11HV60062*HC16 / Plug / for 16mm² shielded cable / with HV interlock / 16mm² shielded cable

12HV60062*NC16 / Plug / for 16mm² shielded cable / without HV interlock / 16mm² shielded cable

13HV60062*HC25 / Plug / for 25mm² shielded cable / with HV interlock / 25mm² shielded cable

14HV60062*NC25 / Plug / for 25mm² shielded cable / without HV interlock / 25mm² shielded cable

15HV60062*HC35 / Plug / for 35mm² shielded cable / with HV interlock / 35mm² shielded cable

16HV60062*NC35 / Plug / for 35mm² shielded cable / without HV interlock / 35mm² shielded cable

Serial No.Ordering Model / Product Description / Compatible Cable Specification

Ordering seriesHV600

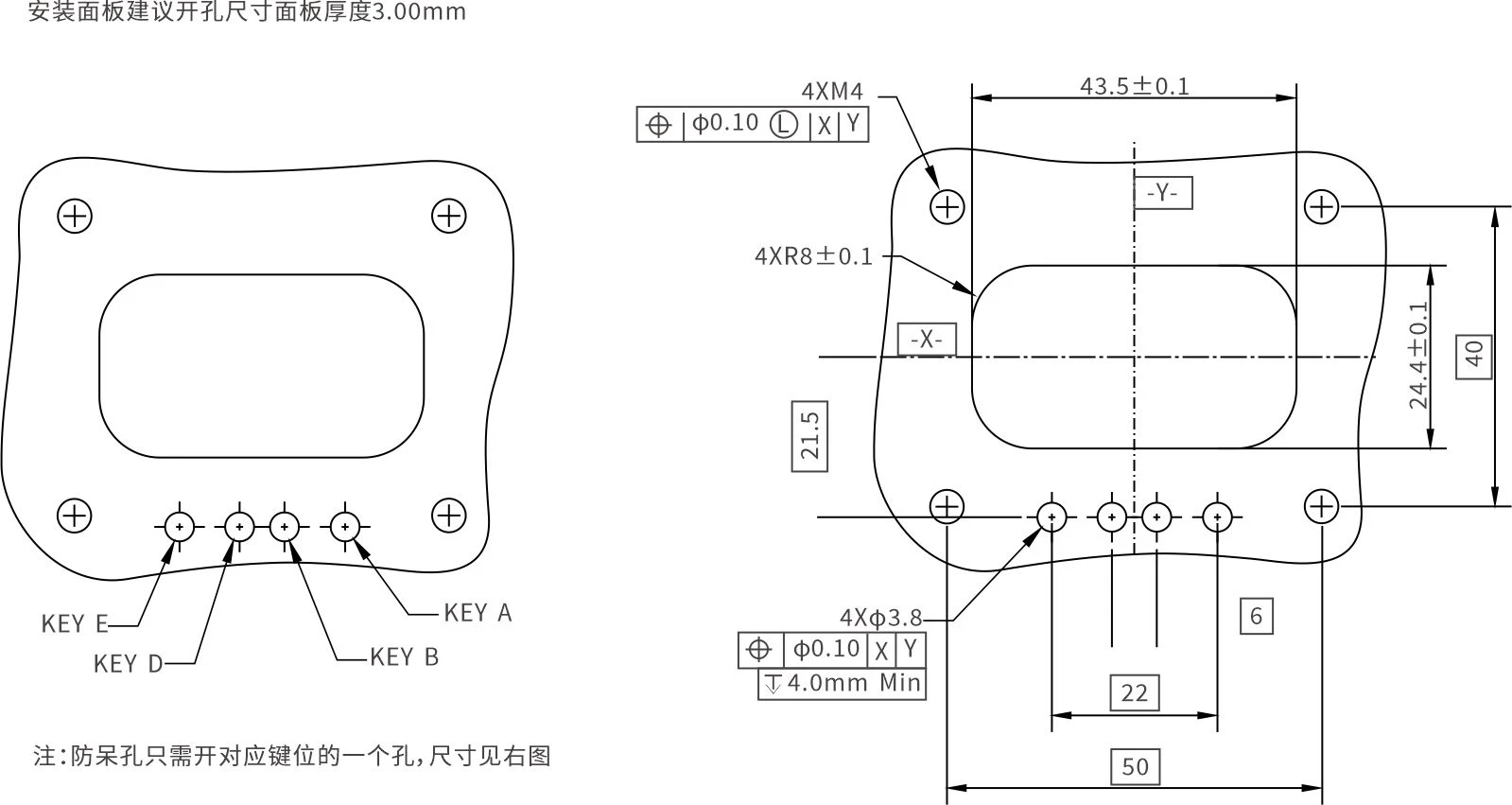

AAnti-misinsertion key position: A-A key position B-B key position D-D key position

HHV interlock: H-with HV interlock N-without HV interlock

C25H - Copper busbar flat-hole locking terminal (receptacle only) C* - Crimp cable terminal *Indicates compatible cable specification C10 - Compatible with 10mm² cable C16 - Compatible with 16mm² cable C25 - Compatible with 25mm² cable C35 - Compatible with 35mm² cable

NPlug only Blank: shielded cable N: unshielded cable Receptacle only Blank: with locating pin N: without locating pin

HV600 series high-voltage interlock connector

1 / 6

HV600 series high-voltage interlock connector 1

HV600 series high-voltage interlock connector 2

HV600 series high-voltage interlock connector 3

HV600 series high-voltage interlock connector 4

HV600 series high-voltage interlock connector 5

HV600 series high-voltage interlock connector 6

Features

This product is a plastic high-voltage connector with a compact structure and two-stage unlocking. It can accommodate various cables, offers multiple anti-misinsertion keying options, features high-voltage interlock, finger-touch protection, and 360° shielding. This product is a plastic-housed high-voltage interlock connector for the electric vehicle and hybrid electric vehicle market, capable of meeting various high-voltage, high-current connection requirements for power batteries, motor controllers, PDU, and more.
