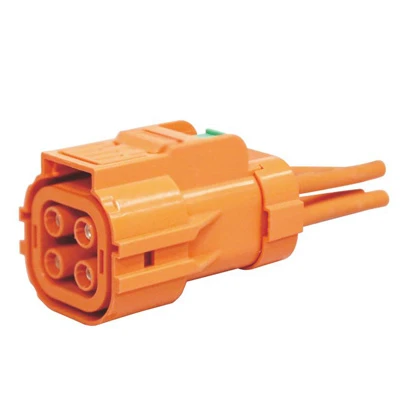

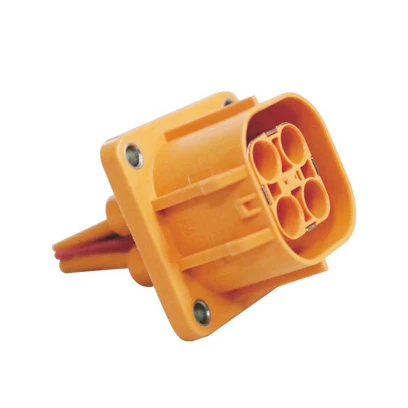

HV360 Series High-Voltage Interlock Connector
Model:
1 / 7
1
2
3
4
5
6
7
Description
This product is a plastic-shell connector with small size, light weight, easy installation, and high reliability. It can replace two two-core interfaces in integrated systems, saving costs. The HV360 series is mainly used in electric vehicle integrated systems to connect devices such as air conditioning and PTC.
Features
- This product is a plastic-shell connector with small size, light weight, easy installation, and high reliability. It can replace two two-pin interfaces on the all-in-one unit, saving costs. The HV360 series is mainly used in electric vehicle all-in-one units to connect devices such as air conditioning and PTC.

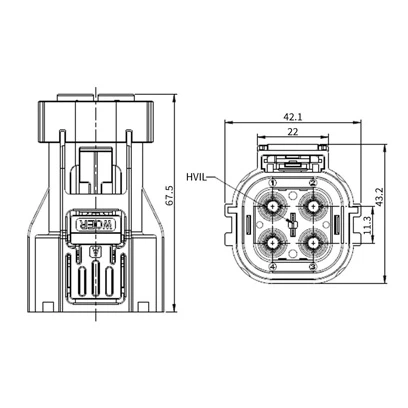

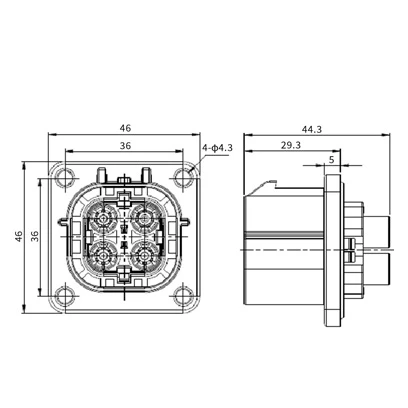

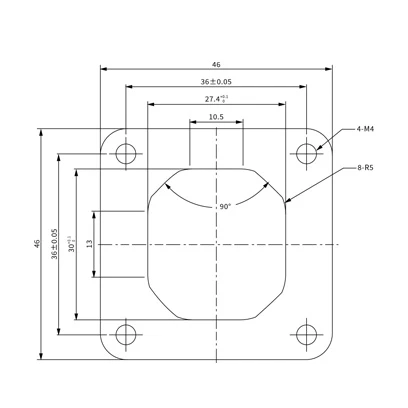

Specifications
1HV36004AH02 / A-key receptacle with high-voltage interlock receptacle / 2.5mm² unshielded cable
2HV36004AH04 / A-key receptacle with high-voltage interlock receptacle / 4.0mm² unshielded cable
3HV36004AH06 / A-key receptacle with high-voltage interlock receptacle / 6.0mm² unshielded cable
64four-core plug; 04: four-core receptacle
Serial No.Order Model / Product Description / Compatible Cable Specification
Product seriesHV360
AKey position: A, B, C, D (currently only A key position is available)
HHigh-voltage interlock: H - with HVIL, N - without HVIL
