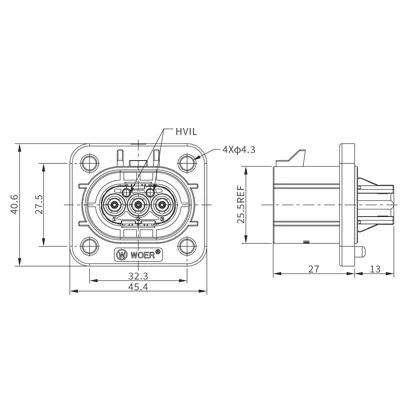

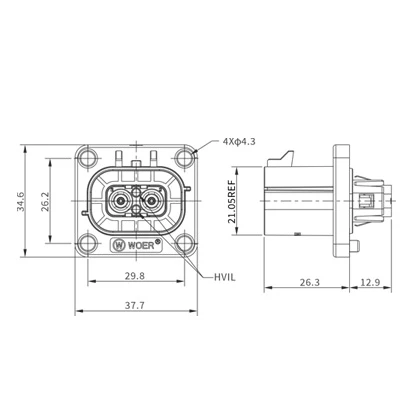

00-Flange-mounted socket (with pins), 6-Plug (with sockets)

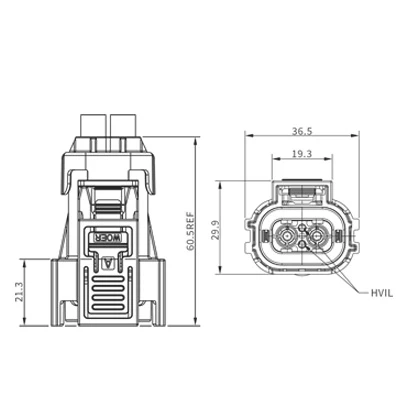

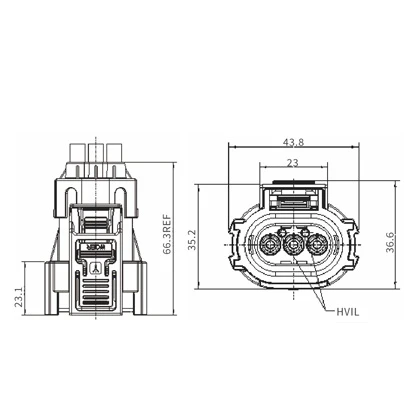

1HV28063*H02 / Plug with high-voltage interlock connector / for 2.5mm² shielded cable / 2.5mm² shielded cable
2Number of cores: 2-two cores, 3-three cores
3HV28063*H04 / Plug with high-voltage interlock connector / for 4mm² shielded cable / 4mm² shielded cable
4HV28063*N04 / Plug without high-voltage interlock connector / for 4mm² shielded cable / 4mm² shielded cable
5HV28063*H06S / Plug with high-voltage interlock connector / for 6mm² shielded cable / 6mm² shielded cable
6HV28063*N06S / Plug without high-voltage interlock connector / for 6mm² shielded cable / 6mm² shielded cable
7HV28003*H02 / Socket with high-voltage interlock connector / for 2.5mm² unshielded cable / 2.5mm² unshielded cable
8HV28003*N02 / Socket without high-voltage interlock connector / for 2.5mm² unshielded cable / 2.5mm² unshielded cable
9HV28003*H04 / Socket with high-voltage interlock connector / for 4mm² unshielded cable / 4mm² unshielded cable
10HV28003*N04 / Socket without high-voltage interlock connector / for 4mm² unshielded cable / 4mm² unshielded cable
11HV28003*H06 / Socket with high-voltage interlock connector / for 6mm² unshielded cable / 6mm² unshielded cable
12HV28003*N06 / Socket without high-voltage interlock connector / for 6mm² unshielded cable / 6mm² unshielded cable
No.Order Model / Product Description / Compatible Cable Specification
Model descriptionHV280

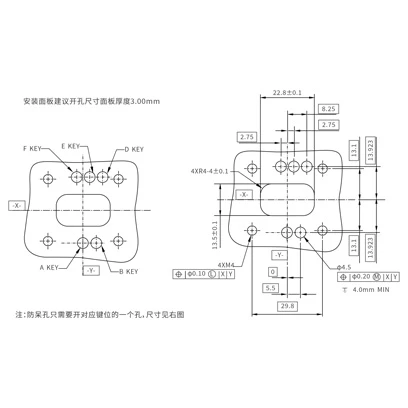

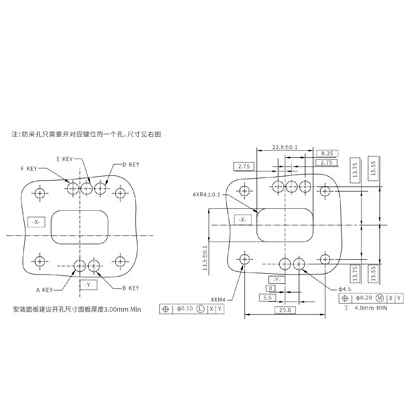

AAnti-mismating key position: A-A key position, B-B key position, D-D key position
HHigh-voltage interlock: H-with high-voltage interlock, N-without high-voltage interlock
0202-for 2.5mm² cable, 04-for 4mm² cable, 06-for 6mm² cable
Nplug only; blank: shielded cable; N: unshielded cable, socket only; blank: with positioning post; N: without positioning post
