HPL200 series single-core 200A with high-voltage interlock connector - WoEr+ Technology
Cables and New Energy Products / Connectors HPL200 series single-core 200A with high-voltage interlock connector Model:
暂停 1 / 6
Description Multiple anti-misinsertion designs; the elbow tail can be rotated 90° in both directions, which greatly facilitates wiring during use. In compact spaces, a high-voltage interlock design is added to provide protection during mating. The HPL200 series connectors are mainly used in high-voltage boxes, electronic controls, and batteries.

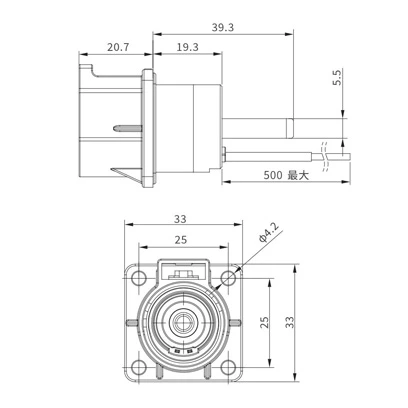

Multiple anti-misinsertion designs; the elbow tail can be rotated 90° in both directions, which greatly facilitates wiring in compact spaces. A high-voltage interlock design is added to provide protection during mating. The HPL200 series connectors are mainly used in high-voltage boxes, electronic controls, and batteries. 1 HPL00*-200-10M8 / * keying, without HVIL, copper busbar M8 threaded-hole socket / M8 / 200A
2 HPL00*-201-10M8 / * keying, with HVIL, copper busbar M8 threaded-hole socket / M8 / 200A

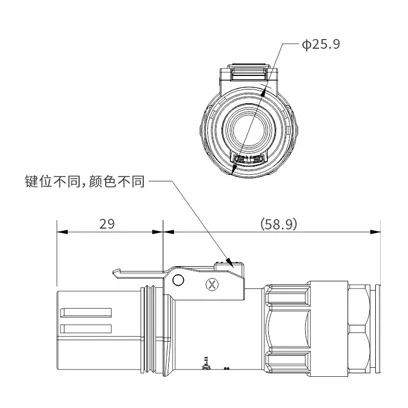

3 HPL18*-200-35 / Straight plug, * keying, without HVIL - 35mm² / 35mm² shielded cable
4 HPL18*-200-50 / Straight plug, * keying, without HVIL - 50mm² / 50mm² shielded cable

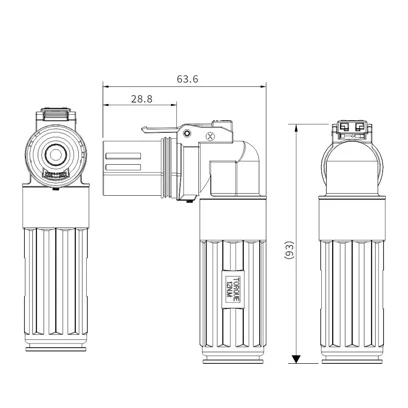

5 HPL28*-200-16 / Right-angle plug, * keying, without HVIL - 16mm² / 16mm² shielded cable
6 HPL28*-200-25 / Right-angle plug, * keying, without HVIL - 25mm² / 25mm² shielded cable
7 HPL28*-200-35 / Right-angle plug, * keying, without HVIL - 35mm² / 35mm² shielded cable
暂停 1 / 6
Multiple anti-misinsertion designs; the elbow tail can be rotated 90° in both directions, which greatly facilitates wiring in compact spaces. A high-voltage interlock design is added to provide protection during mating. The HPL200 series connectors are mainly used in high-voltage boxes, electronic controls, and batteries. 1 HPL00*-200-10M8 / * keying, without HVIL, copper busbar M8 threaded-hole socket / M8 / 200A
2 HPL00*-201-10M8 / * keying, with HVIL, copper busbar M8 threaded-hole socket / M8 / 200A
3
8

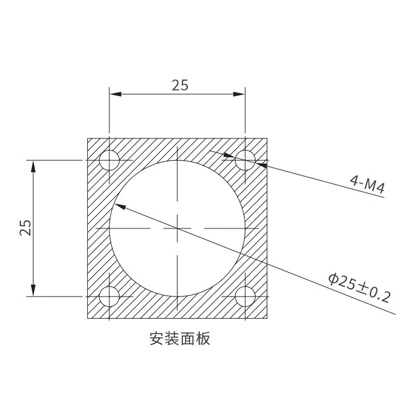

Thread specification: M8 threaded hole
9 HPL18*-201-16 / Straight plug, * keying, with HVIL - 16mm² / 16mm² shielded cable
10 HPL18*-201-25 / Straight plug, * keying, with HVIL - 25mm² / 25mm² shielded cable
11 HPL18*-201-35 / Straight plug, * keying, with HVIL - 35mm² / 35mm² shielded cable
12 HPL18*-201-50 / Straight plug, * keying, with HVIL - 50mm² / 50mm² shielded cable
13 HPL28*-201-16 / Right-angle plug, * keying, with HVIL - 16mm² / 16mm² shielded cable
14 HPL28*-201-25 / Right-angle plug, * keying, with HVIL - 25mm² / 25mm² shielded cable
15 HPL28*-201-35 / Right-angle plug, * keying, with HVIL - 35mm² / 35mm² shielded cable
16 HPL28*-201-50 / Right-angle plug, * keying, with HVIL - 50mm² / 50mm² shielded cable
28 18 indicates straight plug; 28 indicates right-angle plug.
50 Wiring specification: 16 - suitable for 16mm² cable; 25 - suitable for 25mm² cable; 35 - suitable for 35mm² cable; 50 - suitable for 50mm² cable.
201 High-voltage interlock (HVIL): 200 - without HVIL; 201 - with HVIL.
No. Ordering Model / Product Description / Rear Hole Specification / Rated Current
X Anti-misinsertion keying: X-X keying - orange; Y-Y keying - black; W-W keying - red.
10M Copper busbar hole type: 10M - copper busbar threaded hole
MSD manual service disconnect switch Model:
HPL18*-200-35 / Straight plug, * keying, without HVIL - 35mm² / 35mm² shielded cable
4 HPL18*-200-50 / Straight plug, * keying, without HVIL - 50mm² / 50mm² shielded cable
5 HPL28*-200-16 / Right-angle plug, * keying, without HVIL - 16mm² / 16mm² shielded cable
6 HPL28*-200-25 / Right-angle plug, * keying, without HVIL - 25mm² / 25mm² shielded cable
7 HPL28*-200-35 / Right-angle plug, * keying, without HVIL - 35mm² / 35mm² shielded cable
8 Thread specification: M8 threaded hole
9 HPL18*-201-16 / Straight plug, * keying, with HVIL - 16mm² / 16mm² shielded cable
10 HPL18*-201-25 / Straight plug, * keying, with HVIL - 25mm² / 25mm² shielded cable
11 HPL18*-201-35 / Straight plug, * keying, with HVIL - 35mm² / 35mm² shielded cable
12 HPL18*-201-50 / Straight plug, * keying, with HVIL - 50mm² / 50mm² shielded cable
13 HPL28*-201-16 / Right-angle plug, * keying, with HVIL - 16mm² / 16mm² shielded cable
14 HPL28*-201-25 / Right-angle plug, * keying, with HVIL - 25mm² / 25mm² shielded cable
15 HPL28*-201-35 / Right-angle plug, * keying, with HVIL - 35mm² / 35mm² shielded cable
16 HPL28*-201-50 / Right-angle plug, * keying, with HVIL - 50mm² / 50mm² shielded cable
28 18 indicates straight plug; 28 indicates right-angle plug.
50 Wiring specification: 16 - suitable for 16mm² cable; 25 - suitable for 25mm² cable; 35 - suitable for 35mm² cable; 50 - suitable for 50mm² cable.
201 High-voltage interlock (HVIL): 200 - without HVIL; 201 - with HVIL.
No. Ordering Model / Product Description / Rear Hole Specification / Rated Current
X Anti-misinsertion keying: X-X keying - orange; Y-Y keying - black; W-W keying - red.
10M Copper busbar hole type: 10M - copper busbar threaded hole
