HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 1

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 2

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 3

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 4

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 5

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector 6

Features

The product is widely applicable to high-current connection equipment terminals such as electric vehicle drive motors, generators, electric motors, motor controllers, inverters, and PDU. 1. The product is a high-voltage connector with small size and compact structure, achieving 360° shielding; 2. It features a metal shell design with characteristics such as shock resistance, compression resistance, easy installation, reliability, and aesthetic appeal.

Specifications

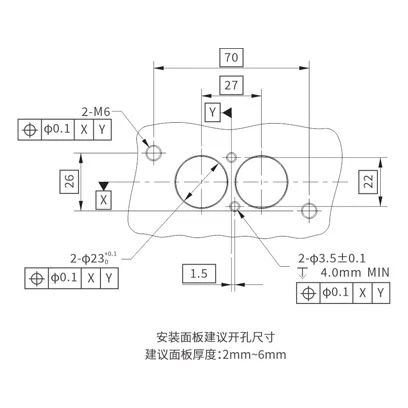

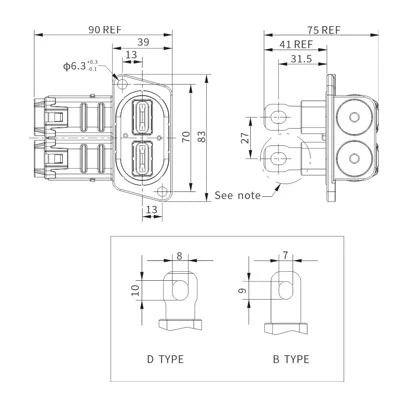

1HD01-2-16-B / Two-core elbow detachable feed-through connector-M6 / 16mm² shielded cable

2Number of cores: 2-two-core 3-three-core

3HD01-2-35-B / Two-core elbow detachable feed-through connector-M6 / 35mm² shielded cable

4HD01-2-50-B / Two-core elbow detachable feed-through connector-M6 / 50mm² shielded cable

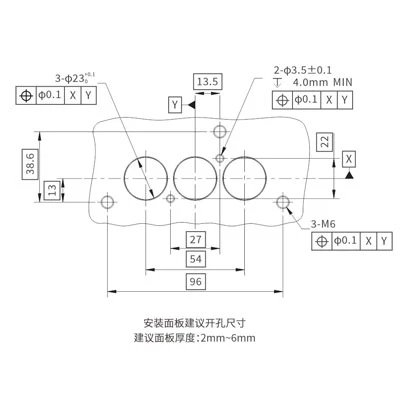

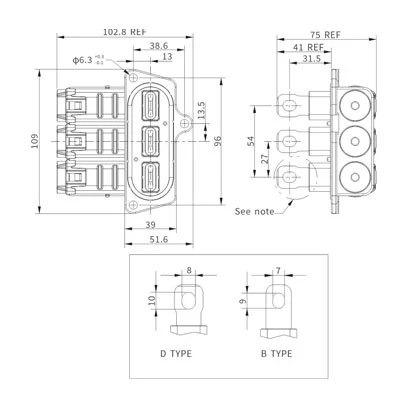

5HD01-3-16-B / Three-core elbow detachable feed-through connector-M6 / 16mm² shielded cable

6HD01-3-25-B / Three-core elbow detachable feed-through connector-M6 / 25mm² shielded cable

7HD01-3-35-B / Three-core elbow detachable feed-through connector-M6 / 35mm² shielded cable

8HD01-3-50-B / Three-core elbow detachable feed-through connector-M6 / 50mm² shielded cable

16Wire specification: 16-compatible with 16mm² cable 25-compatible with 25mm² cable 35-compatible with 35mm² cable 50-compatible with 50mm² cable

Serial No.Order Model / Product Description / Compatible Cable Specification

SelectionDescription

XCustomer-customized copper bar length B, D... B applies to M6, D applies to M8

HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector

Name: HD01 Screw-type 90° Two-Core/Three-Core Feed-Through Connector
Brand: Cables and New Energy Products

Model:

Description

The product is widely applicable to high-current connection equipment terminals such as EV drive motors, generators, electric motors, motor controllers, inverters, and PDU. 1. The product is a high-voltage connector with small size and compact structure, achieving 360° shielding function; 2. It adopts a metal shell design, featuring shock resistance, compression resistance, easy installation, reliability, and aesthetic appeal.
