Cables and New Energy Products / Connectors
CPT-A series 180° through-hole connectors
Model:
1 / 6
1
2
3
4
5
6
Description
The CPT-A series is designed for electric vehicle drive motors, motor controllers, multi-in-one and other equipment. It can crimp 25–70 mm² cables, with a maximum current capacity of 250A. It features 360° shielding and high-level protection. Simple installation, reliable connection, and superior economy.
Features
- The CPT-A series is designed for electric vehicle drive motors, motor controllers, multi-in-one devices, and similar equipment. It can crimp 25–70 mm² cables, with a maximum current-carrying capacity of 250A, and features 360° shielding and high-level protection. Simple installation, reliable connection, and superior economy.
Specifications

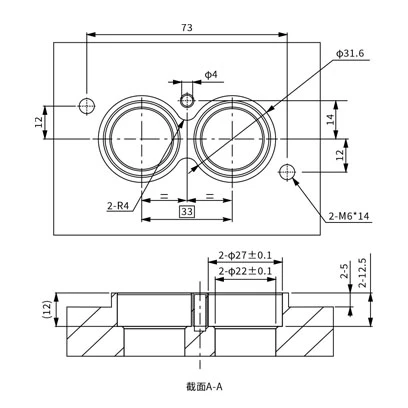

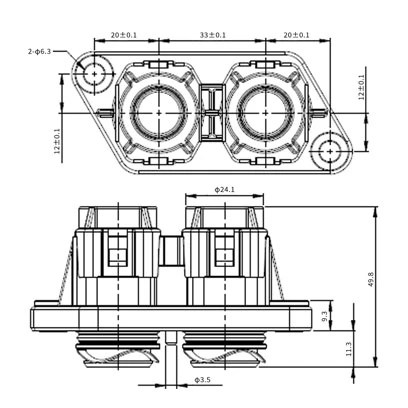

1CPT2-25A / Two-core feed-through connector / 25mm² shielded cable
22-two-core; 3-three-core
3CPT2-50A / Two-core feed-through connector / 50mm² shielded cable
4CPT2-70A / Two-core feed-through connector / 70mm² shielded cable

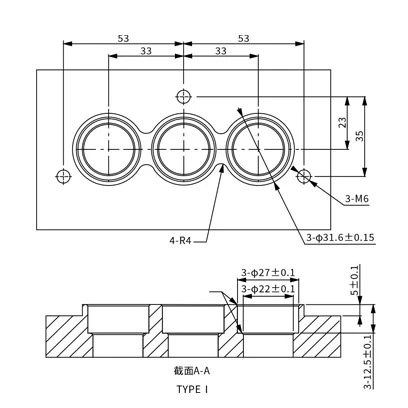

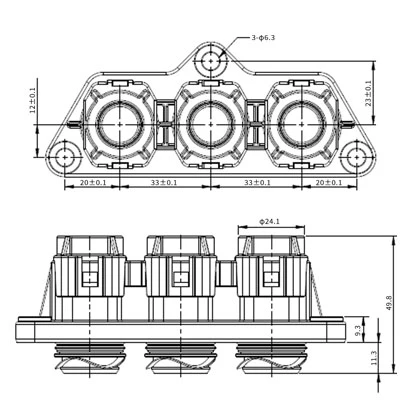

5CPT3-25A / Three-core feed-through connector / 25mm² shielded cable
6CPT3-35A / Three-core feed-through connector / 35mm² shielded cable
7CPT3-50A / Three-core feed-through connector / 50mm² shielded cable
8CPT3-70A / Three-core feed-through connector / 70mm² shielded cable
