Electronic series products / Double-arm rubberized heat-shrinkable tube
Eco-friendly V0 FR Dual Wall Heat Shrink Tubing
Model: SBRS-(3X)GFV
1 / 3
1
2
3
Description
Applications

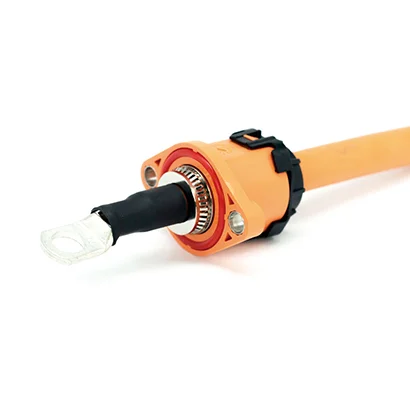

Wiring harnesses, marine cables, metal pipes requiring waterproof
Description
SBRS-(3X)GFV high FR polyolefin + hot melt adhesive. Waterproof, anti-corrosion, anti-leakage. Meets AMS-DTL-23053/4, QC/T 29106, GB/T2408. V-0/HB FR grade, 3:1 shrink, RoHS.
Features
- Eco-friendly FR: V-0 grade
- Excellent waterproof sealing
- Wide temp range: -45℃~125℃
- High shrink ratio: 3:1
- Good electrical properties: ≥15kV/mm
- Strong adhesion to PE/Al
- RoHS
- Color: Black
Specifications
FRV-0/HB
ColorBlack
Tensile≥10.4 MPa
Peel(Al)≥80N/25mm
Peel(PE)≥120N/25mm
Oper Temp-45℃~+125℃
StandardsAMS-DTL-23053/4;QC/T 29106;GB/T2408
Dielectric≥15kV/mm
Elongation≥300%
1 / 3
1
2
3
Features
- Eco-friendly FR: V-0 grade
- Excellent waterproof sealing
- Wide temp range: -45℃~125℃
- High shrink ratio: 3:1
- Good electrical properties: ≥15kV/mm
- Strong adhesion to PE/Al
- RoHS
- Color: Black
