Electronic series products / Double-arm rubberized heat-shrinkable tube

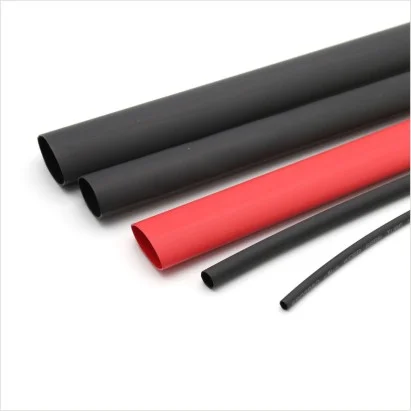

3:1 & 4:1 Eco-friendly Dual Wall Heat Shrink Tubing
Model: SBRS-(3X,4X)G
1 / 3
1
2
3
Description
Applications
Wiring harnesses, marine cables, metal pipe sealing and insulation
Description
SBRS-(3X,4X)G soft FR polyolefin + adhesive. High ratio shrink for varying diameter components. 3:1 & 4:1 ratios, UL certified, RoHS, -45℃~125℃. Ten standard colors.
Features
- Eco-friendly FR: RoHS
- High ratio: 3:1 and 4:1
- Excellent waterproof sealing
- Insulation protection
- UV resistant
- Wide working temp: -45℃~+125℃
- UL Certified
- Ten standard colors
Specifications
ColorBlack(10 colors custom)
Tensile≥10.4 MPa
Peel(Al)≥80N/25mm
Peel(PE)≥120N/25mm
Oper Temp-45℃~+125℃
Dielectric≥15kV/mm
Elongation≥200%
Full Shrink≥+125℃
Init Shrink≥+70℃
1 / 3
1
2
3
Features
- Eco-friendly FR: RoHS
- High ratio: 3:1 and 4:1
- Excellent waterproof sealing
- Insulation protection
- UV resistant
- Wide working temp: -45℃~+125℃
- UL Certified
- Ten standard colors
