1Model / 50-630mm2
2Nominal voltage (kV): / 26/35
3Maximum allowable continuous operating voltage (kV): / 40.5
4Withstand impulse voltage (kV): / 250
5Conductor rated temperature / Same as cable
6Normal operating temperature (°C) / 90
7Short-circuit temperature (°C) / 250
8Transmission capacity / Same as cable
9Short-circuit capacity / Same as cable
10Specific creepage distance / Greater than 3.1 cm/kV
11Standard for connection to equipment / GB/T 14315
12Height (length) / Indoor 460 mm, outdoor 520 mm
13Short-circuit current allowable through earthing parts / Not less than that of the selected cable
14Weight (kg/piece) / Single-core 2.55 kg/set

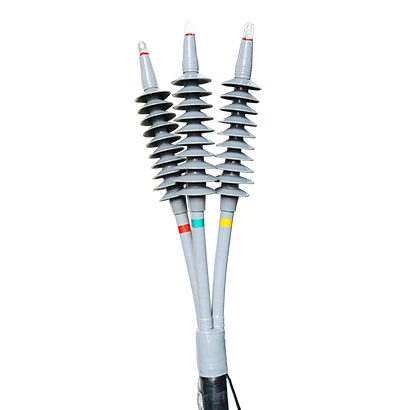

No.Name / Cold-shrink cable termination
