Electronic series products / Single-arm heat shrinkable sleeve

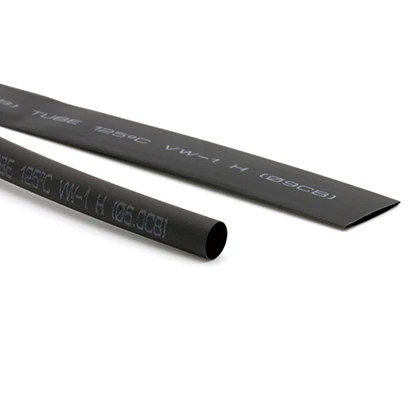

Halogen-Free Ultra-Thin FR Heat Shrink Tubing
Model: RSFR-(2X)125H(CB)
1 / 3
1
2
3
Description
Description
125℃ halogen-free ultra-thin FR heat shrink tubing made of radiation cross-linked polyolefin. Ultra-thin wall ideal for micro electronics protection. Halogen-free and FR improved. Wire harness protection, electrical insulation, anti-corrosion.
Features
- Standards: UL224
- Shrink Ratio: 2:1
- Halogen-free,flexible,FR,fast
- Init Shrink: ≥+70℃
- Full Shrink: ≥+110℃
- Oper Temp: -55℃~+125℃
- VW-1 FR
- RoHS
- Ultra-thin for micro devices
- Tensile ≥10.4 MPa
- Elongation ≥200%
- Resistivity ≥10¹⁴ Ω·cm
Specifications
FRVW-1
ColorsBlack,White,Red,Yellow,Green,Blue
EnviroRoHS,IPC/JEDEC,Class H
Tensile≥10.4 MPa
FeaturesHalogen-free,flexible,FR,fast
Oper Temp-55℃~+125℃
StandardsUL224,CAN/CSA C22.2
Elongation≥200%
Full Shrink≥+110℃
