Separable Cable Accessories / European Separable Cable Accessories
Busbar Connector Series Products
Model:
1 / 4
1
2
3
4
Description

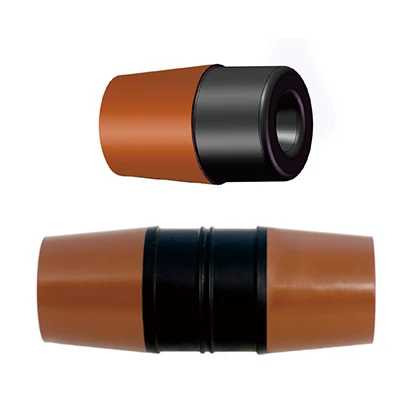

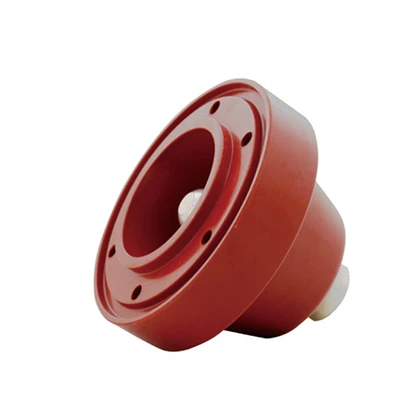

Applicable to the cabinet coupling connection of Schneider (Areva) FBX gas-insulated switchgear, providing side expansion bushings, busbar connections, and sealing plug products. These products meet the requirements of GB/T 8349 and GB/T 11022.
Features
Suitable for the cabinet-to-cabinet connection of Schneider (Areva) FBX gas-insulated switchgear, providing side-extended bushings, busbar connections, and sealing plugs. The product meets the requirements of GB/T 8349 and GB/T 11022.
Specifications
Rated voltage15 kV
Rated current630 A
Power-frequency withstand voltage (AC)42 kV/5 min
Partial discharge15 kV, ≤10 pC
Impulse voltage (10 times each for positive and negative polarity)75 kV
Suitable for the cabinet-to-cabinet connection of Schneider (Areva) FBX gas-insulated switchgear, providing side-extended bushings, busbar connections, and sealing plugs. The product meets the requirements of GB/T 8349 and GB/T 11022.
Specifications
Rated voltage15 kV
Rated current630 A
Power-frequency withstand voltage (AC)42 kV/5 min
Partial discharge15 kV, ≤10 pC
Impulse voltage (10 times each for positive and negative polarity)75 kV
