Heat Shrink Cable Accessories / High Voltage Cable Accessories
64/110kV XLPE cable shield repair joint
Model:
1 / 2
1
2
Description

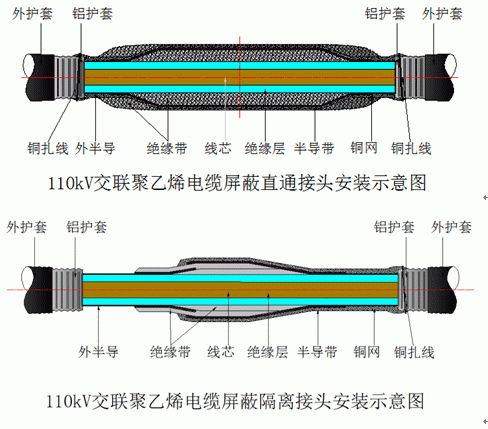

110kV交联聚乙烯电缆屏蔽隔离接头是通过胶带绕包工艺，恢复电缆的外屏蔽层，并缠绕应力锥结构疏散电场，每款胶带都具有专业的电气性能，其自粘自融性也使得胶带与电缆、胶带与胶带之间快速融合，从而极大地减少了施工过程当中产生间隙的可能性。110kV交联聚乙烯电缆屏蔽隔离接头修复电缆外屏蔽层，不需要切断电缆线芯，极大地减小了电缆中间接头电阻过大问题，电缆本身的绝缘层也未受到破坏，其绝缘性能依然保存良好。
Features
- The 110kV cross-linked polyethylene (XLPE) cable shielding isolation joint uses a tape-wrapping process to restore the cable's outer shielding layer and wind a stress cone structure to disperse the electric field. Each type of tape possesses professional electrical properties, and its self-adhesive and self-fusing nature enables rapid fusion between tape and cable as well as between tape and tape, thereby greatly reducing the possibility of gaps during construction. The 110kV XLPE cable shielding isolation joint repairs the cable's outer shielding layer without cutting the cable conductor, significantly reducing the problem of excessive resistance at cable intermediate joints. The cable's own insulation layer remains undamaged, and its insulation performance is well preserved.
Specifications
Power frequency withstand voltage (AC) 160kV/40minno breakdown, no flashover
Partial discharge at 96kV≤10pC
Impulse voltage 550kV (10 times each positive and negative polarity)no breakdown, no flashover
1 / 2
1
2
Features
- The 110kV cross-linked polyethylene (XLPE) cable shielding isolation joint uses a tape-wrapping process to restore the cable's outer shielding layer and wind a stress cone structure to disperse the electric field. Each type of tape possesses professional electrical properties, and its self-adhesive and self-fusing nature enables rapid fusion between tape and cable as well as between tape and tape, thereby greatly reducing the possibility of gaps during construction. The 110kV XLPE cable shielding isolation joint repairs the cable's outer shielding layer without cutting the cable conductor, significantly reducing the problem of excessive resistance at cable intermediate joints. The cable's own insulation layer remains undamaged, and its insulation performance is well preserved.
Specifications
Power frequency withstand voltage (AC) 160kV/40minno breakdown, no flashover
